Model NameModelCutting WidthCutting HeightFeed DepthCutting SpeedMachine DimensionsManufacturer's Warranty
-
Standard PC-P430
Max. 434 mm (17.08")Max. 23 mm (0.90") (Normal Paper 64 gsm, 250 sheets)Max. 320 mm (12.59") (No limit by backgauge free. However, Max. pile height is 64 gsm, 150 sheets of normal paper.) Min. 50 mm (2.00")4 sec. (60 Hz) / 4.8 sec. (50 Hz)675(W) x 600(D) x 375(H) mm (26.6" x 23.7" x 14.8") (No projection)1 Year Manufacturer Manufacturer's Warranty -
Standard APC-610
Max - 610 mm / 24.0"100 mm / 3.93" (95 mm / 3.74" using the support plate)Min: 620 mm / 24.4", Max: 25 mm / 0.98" (65 mm / 2.56" using support plate)3.8 seconds per cycle45.6" W x 59.3" D x 58" H (1,156 x 506 x 472 mm) -
Standard PC-640
640mm / 25.19"70mm / 2.75"Min: 20mm / 0.79", Max: 640mm / 25.19"2.8 seconds per cycle (60 Hz)1,070 x 1,185 x 1,315 mm / 42.2" x 46.7" x 51.8" -
Standard PC-450
4446mm (17.5")70mm (2.7")Max 450mm (17.7"), Min. 20mm (0.78")2.5 sec/cut31.2" x 31.7" x 46.1"1 Year Manufacturer Manufacturer's Warranty -
Standard APC-450
450 mm / 17.7"60 mm / 2.36"Max. 450 mm / 17.7", Min. 40 mm / 1.58"9 seconds per cycle (50 Hz) / 8 seconds per cycle (60 Hz)840 x 905 x 1,400 mm / 33.1"x 35.7" x 55.2"
We're sorry, but we no longer offer this item.
Call us at 1-800-944-4573 for personalized recommendations
or check out these similar items that may be a good fit:
-
Triumph 4350 16.875" Electric Paper Cutter With Digital Display
$7,403.00
- Cutting Width: 16 7/8"
- Cutting Height: 1 1/2"
- Cutting Height: 1 1/2"
- Narrow Cut: 1 3/8"
-
Triumph 4315 16.875" Semi-Automatic Tabletop Paper Cutter
$6,179.00
- Cutting Width: 16 7/8"
- Cutting Height: 1 1/2"
- Narrow Cut: 1 3/8"
- Cutting Length Behind Blade: 17"
-
Formax Cut-True 23S 17" Electric Paper Cutter
$4,935.25
- Cuts paper stacks up to 1.75” high x 16.9” wide
- Semi-automatic cutting for reduced manual effort
- LED laser line for precise cut alignment
- LED back gauge display for accurate positioning
-
Triumph 4850 18.625" Electric Paper Cutter with Digital Display
$13,335.00
- SCS (Safety Cutting System) package: hinged, transparent electronically controlled front safety guard; transparent safety cover on rear table;
- Electric blade and clamp drive
- Solingen steel blade
- Solid steel bade carrier and adjustable blade guides

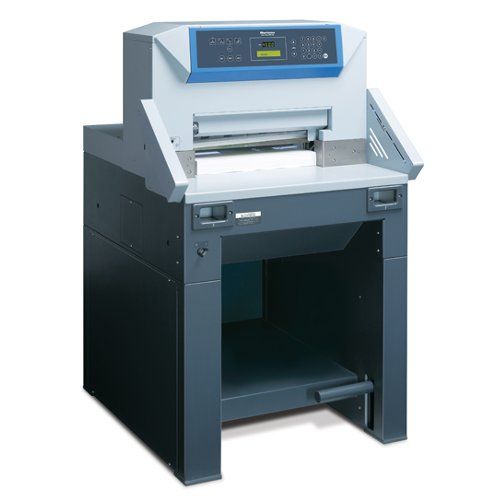

Standard APC-450 17.7" Programmable Electric Paper Cutter
FAQ: 0 Questions, 0 Answers
0 Q&As
We're here for you!
Please call 1-800-944-4573 for help finding a comparable solution, or
Click to Chat
Item# APC-450
- Cutting Width: Max. 450 mm / 17.7"
- Cutting Height Max.: 60 mm / 2.36"
- Clamp System and Pressure: Auto 10 kN (1,000 kgf)
- Cutting Speed: 9 seconds per cycle (50 Hz) / 8 seconds per cycle (60 Hz)
ProductDescription
The Standard APC-450 17.7" Programmable Electric Paper Cutter is an ideal choice for cutting digital prints and completing bleed trim work with a width of up to 17.7’’. Featuring an optimized design that focuses on enhancing productivity, the machine can store up to 30 programs with 99 steps each. Three memory buttons offer easy access to the programs, while a job recall function provides the easiest way to complete repeat jobs. Thanks to the LED cut line indicator, the operator can ensure a perfect cut. Safety features include a two button operation, infrared safety detection, an emergency stop feature, a safety cover, and area sensors that meet the Category 4 safety level according to ISO13849-1. The Standard APC-450 17.7" Programmable Electric Paper Cutter comes with a foot pedal as standard.
Product Details
- Control Panel:
- Job recall function. Frequent jobs, for example A3 cut to A4 can be recalled with the push of a button. Three “Quick Call” buttons are available to program frequent jobs.
- Programming function. Repeat jobs can be conveniently saved to memory. The capacity of job memory is 30 courses and 99 steps (total 300 points).
- Operator Safety:
- Standard Equipped Area Sensors. If the area sensors detect any objects, the cutting motion will stop immediately. These sensors meet the high level of safety in Category 4 according to ISO13849-1.
- Double Safety Circuit. The system is further equipped with a hard-wired secondary safety interrupt for operator safety.
- Foot Pedal: The foot pedal is provided as standard function. With the foot pedal, the paper will be clamped fi rmly before electrical powered clamp pressure.
- Backgauge: The backgauge can be moved by 0.1 mm / 0.005" accuracy. Automatic push-out is provided as a standard function for smooth and safe operation.
Item Specifications
- Cutting Width: Max. 450 mm / 17.7"
- Cutting Height: Max. 60 mm / 2.36"
- Cutting Depth: Max. 450 mm / 17.7" / Min. 40 mm / 1.58"
- Clamp System and Pressure: Auto 10 kN (1,000 kgf)
- Job Memory: 30 Jobs, 99 Steps, Total 300 Steps
- Push-out Length: 50 mm / 1.96"
- Cutting Speed: 9 seconds per cycle (50 Hz) / 8 seconds per cycle (60 Hz)
- Voltage/Frequency: Single Phase 120 V, 50 / 60 Hz
- Rated Current: Single Phase 120 V, 50 / 60 Hz, 13 A
- Machine Dimensions W x D x H: 840 x 905 x 1,400 mm / 33.1"x 35.7" x 55.2"
- Machine Weight: 321 kg / 707.1 lb
