Model NameModelCutting WidthCutting HeightFeed DepthCutting SpeedMachine DimensionsManufacturer's Warranty
-
Standard PC-P430
Max. 434 mm (17.08")Max. 23 mm (0.90") (Normal Paper 64 gsm, 250 sheets)Max. 320 mm (12.59") (No limit by backgauge free. However, Max. pile height is 64 gsm, 150 sheets of normal paper.) Min. 50 mm (2.00")4 sec. (60 Hz) / 4.8 sec. (50 Hz)675(W) x 600(D) x 375(H) mm (26.6" x 23.7" x 14.8") (No projection)1 Year Manufacturer Manufacturer's Warranty -
Standard APC-610
Max - 610 mm / 24.0"100 mm / 3.93" (95 mm / 3.74" using the support plate)Min: 620 mm / 24.4", Max: 25 mm / 0.98" (65 mm / 2.56" using support plate)3.8 seconds per cycle45.6" W x 59.3" D x 58" H (1,156 x 506 x 472 mm) -
Standard PC-640
640mm / 25.19"70mm / 2.75"Min: 20mm / 0.79", Max: 640mm / 25.19"2.8 seconds per cycle (60 Hz)1,070 x 1,185 x 1,315 mm / 42.2" x 46.7" x 51.8" -
Standard PC-450
4446mm (17.5")70mm (2.7")Max 450mm (17.7"), Min. 20mm (0.78")2.5 sec/cut31.2" x 31.7" x 46.1"1 Year Manufacturer Manufacturer's Warranty -
Standard APC-450
450 mm / 17.7"60 mm / 2.36"Max. 450 mm / 17.7", Min. 40 mm / 1.58"9 seconds per cycle (50 Hz) / 8 seconds per cycle (60 Hz)840 x 905 x 1,400 mm / 33.1"x 35.7" x 55.2"
We're sorry, but we no longer offer this item.
Call us at 1-800-944-4573 for personalized recommendations
or check out these similar items that may be a good fit:
-
Triumph 4350 16.875" Electric Paper Cutter With Digital Display
$7,403.00
- Cutting Width: 16 7/8"
- Cutting Height: 1 1/2"
- Cutting Height: 1 1/2"
- Narrow Cut: 1 3/8"
-
Triumph 4315 16.875" Semi-Automatic Tabletop Paper Cutter
$6,179.00
- Cutting Width: 16 7/8"
- Cutting Height: 1 1/2"
- Narrow Cut: 1 3/8"
- Cutting Length Behind Blade: 17"
-
Formax Cut-True 23S 17" Electric Paper Cutter
$4,935.25
- Cuts paper stacks up to 1.75” high x 16.9” wide
- Semi-automatic cutting for reduced manual effort
- LED laser line for precise cut alignment
- LED back gauge display for accurate positioning
-
Triumph 4850 18.625" Electric Paper Cutter with Digital Display
$13,335.00
- SCS (Safety Cutting System) package: hinged, transparent electronically controlled front safety guard; transparent safety cover on rear table;
- Electric blade and clamp drive
- Solingen steel blade
- Solid steel bade carrier and adjustable blade guides

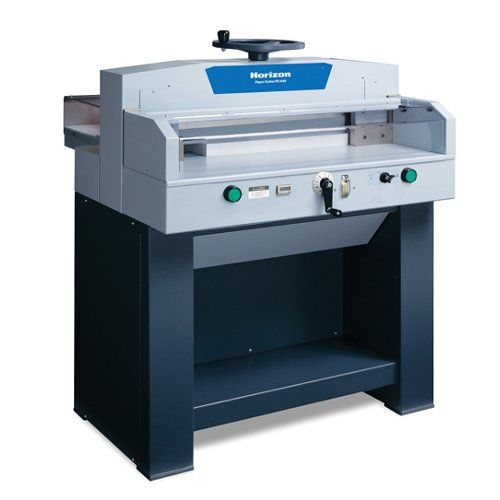

Standard PC-640 25" Electric Paper Cutter
FAQ: 0 Questions, 0 Answers
0 Q&As
We're here for you!
Please call 1-800-944-4573 for help finding a comparable solution, or
Click to Chat
Item# PC-640
- Cutting Width: Max. 640mm / 25.19"
- Cutting Height Max.: 70mm / 2.75"
- Cutting Depth Max.: 640mm / 25.19"/ Min. 20mm / 0.79"
- Clamp System and Pressure: Manual / Max. About 10 kN (1,000 kgf)
ProductDescription
The Standard PC-640 25" Paper Cutter ensures accurate cutting with a width of 25.1’’ and a lift height of 2.7’’. Designed with convenience in mind, the cutter completes a cutting job in only three steps. The user sets up the required cut size, clamps the stock, and pushes down the two hand switches that activate the blades. A built-in illuminated line indicator ensures maximum precision while various safety features bring peace of mind. They include a two button operation, emergency stop feature, safety cover, and a double safety circuit. Other features include a digital counter for cutting cycles, a key switch that limits user access, and a clamp system that prevents book spines from crushing.
Product Details
- Accurate Cutting - The backgauge enables you to adjust the cutting length accurately within 0.5mm / 0.019" by turning the positioning handle. The backgauge can be locked when you repeat the same cutting position.
- Cut Line - The LED cutting line shows the actual cutting position to allow easy and accurate positioning and operation.
- Safety - The PC-640 employs updated safety standards. Two button operation, safety cover, and emergency stop features for operator safety. Simple and safe operation suitable for office use.
- Easy Operation - Clamp the stock by turning the pressure handle by hand, and press the two cutting buttons.
- Double Safety Circuit -The system is further equipped with a hard-wired secondary safety interrupt for operator safety.
- Safety Mechanism - The machine does not operate when the front cover is opened. Also, if either of the two cutting buttons is released during the cutting operation, the machine will be stopped immediately.
- Key Switch - The Power switch is key-activated to limit user access.
- Counter - Cut cycles are indicated on a digital counter. It helps to determine when the cutting knife should be sharpened or replaced.
- Clamp - Special cutouts are provided on both edges of the clamp to prevent the book spine from crushing.
Item Specifications
- Cutting Width: Max. 640mm / 25.19"
- Cutting Height Max.: 70mm / 2.75"
- Cutting Depth Max.: 640mm / 25.19"/ Min. 20mm / 0.79"
- Clamp System and Pressure: Manual / Max. About 10 kN (1,000 kgf)
- Cutting Speed: 2.8 seconds per cycle (60 Hz)
- Voltage/Frequency Single Phase: 115 V, 50 / 60 Hz
- Rated Current Single Phase: 115 V, 50 / 60 Hz, 15 A
- Machine: Dimensions W x H x D - 1,070 x 1,185 x 1,315 mm / 42.2" x 46.7" x 51.8"
- Machine Weight: 318 kg / 700.5 lb
